警報用ヒューズ・ホルダ/Alarm Indicating Fuses & Fuseholders

HP032~HP50

HP032~HP50
  • HP032~HP50
  • HP032~HP50
  • HP032~HP50
ルーター/スイッチルーター/スイッチ
産業用ロボット産業用ロボット

外形寸法・重量 Size, Net wight
30.3×8×20mm 4g
色 Color
深緑色 Dark Green
包装 Package
50個/スティック
50pcs/stick
使用温度範囲 Range of ambient temperature
-20℃~70℃
※範囲外での使用を検討される場合は、お気軽にお問い合わせ下さい
保存温度 Storage temperature
-40℃~85℃
適合ヒューズ/ホルダ Compatible fuse/holder
HPH-2P / 4P, HPH-2S / 4S, HPH-2V / 4V

製品説明

本品は、断表示(警報)機能を有する交換型のヒューズです。
HPヒューズホルダを併用することで、溶断時に接点出力も可能です。
This fuse has a blown indication function.
By using a HP fuse holder, contact output is also possible when the fuse blows.

製造年月コードの説明 Descriptions on date of manufacture codes
例:06Z(年・月) Example: 06Z (Year/Month)
年:2006年 西暦の末尾2桁 Year: 2006, Two digits of last of the year
月:1~9 10月:X、11月:Y、12月:Z Month: 1 to 9 Oct: X, Nov: Y, Dec: Z
Rated current: 0.32A, 0.5A, 1A, 1.6A, 2A, 3.2A, 5A, 6.3A

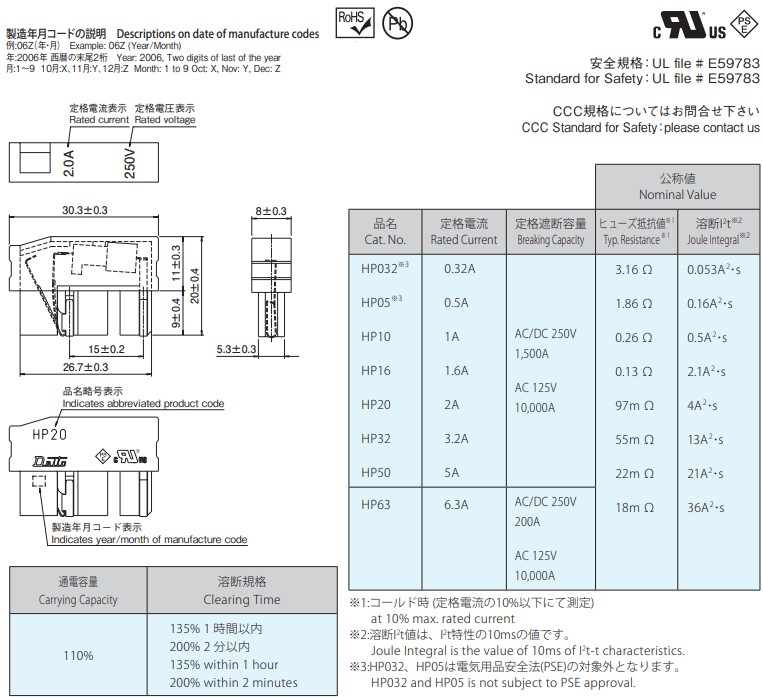

仕様表1

仕様表1

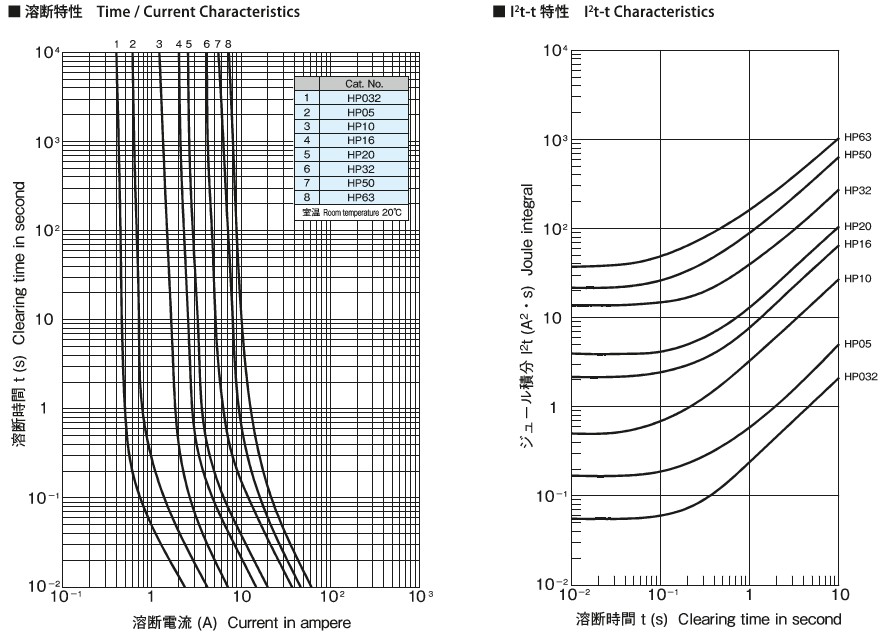

溶断特性 Time / Current Characteristics

溶断特性
